AG Panel Roll Forming Machine
AG roof panel is one of the most popular styles in the United States. This production line is a customized roll forming production line for high-quality and high-strength AG roof panels. Multiple parameters of the production line can be customized according to customer needs.
-
Core Features
-
Download
-
Parameters
-

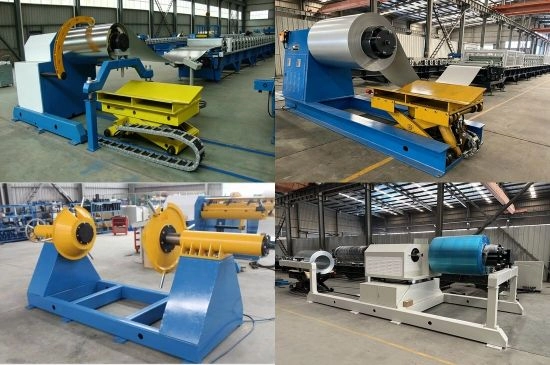

Decoilers
Multiple types and configurations of decoiling/unwinding machines are optional: 3tons, 5tons, 8tons, 10tons, 15tons, coil cart, pressing arm, double head decoiler etc.
-

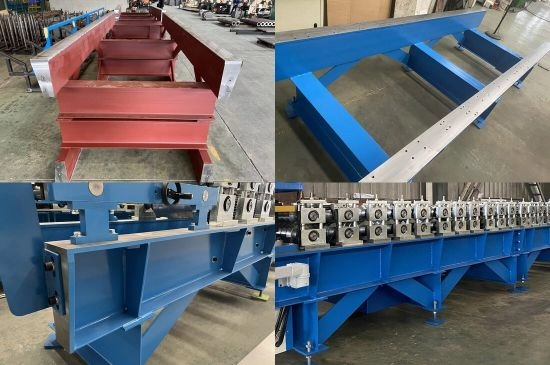

Frame/Base
Installation plane and threaded hole for precision machining of gantry milling machine, ultra thick frame material, multiple reinforcement ribs, and multiple anti-corrosion processes etc.
-

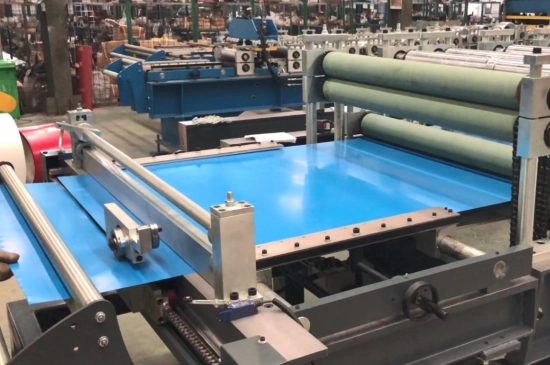

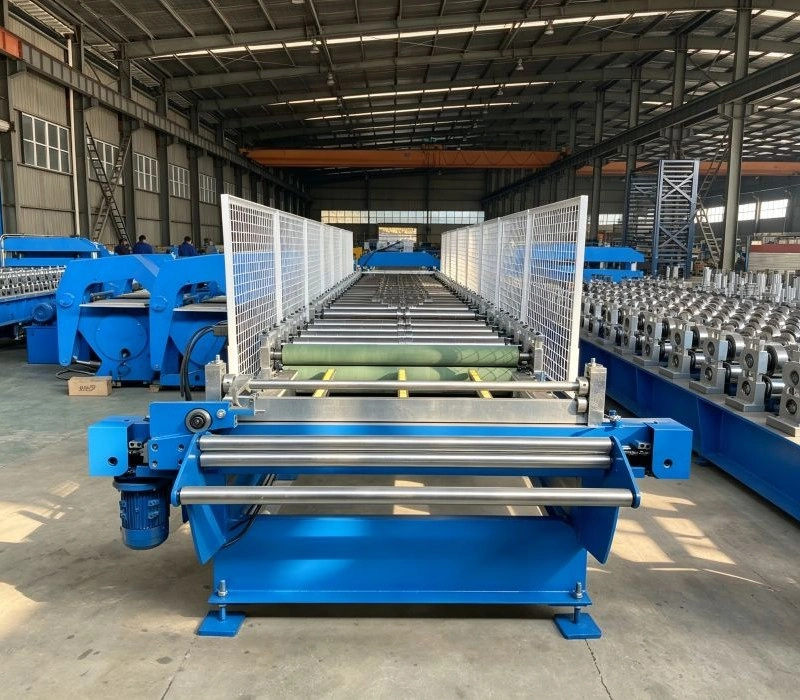

Pre-shearing
The electric front cutting device perfectly cuts the remaining steel plate when replacing different steel coils.
-

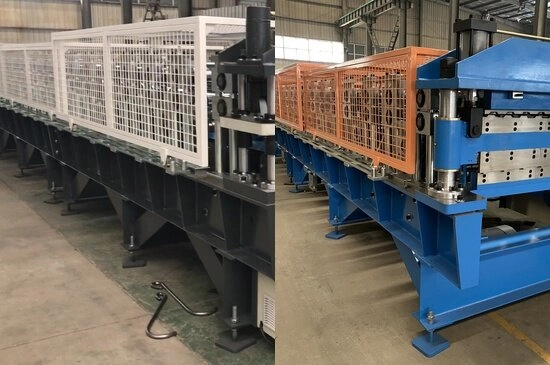

Safety fences
We can customize safety fences according to customer requirements, including color, type, and size.
-

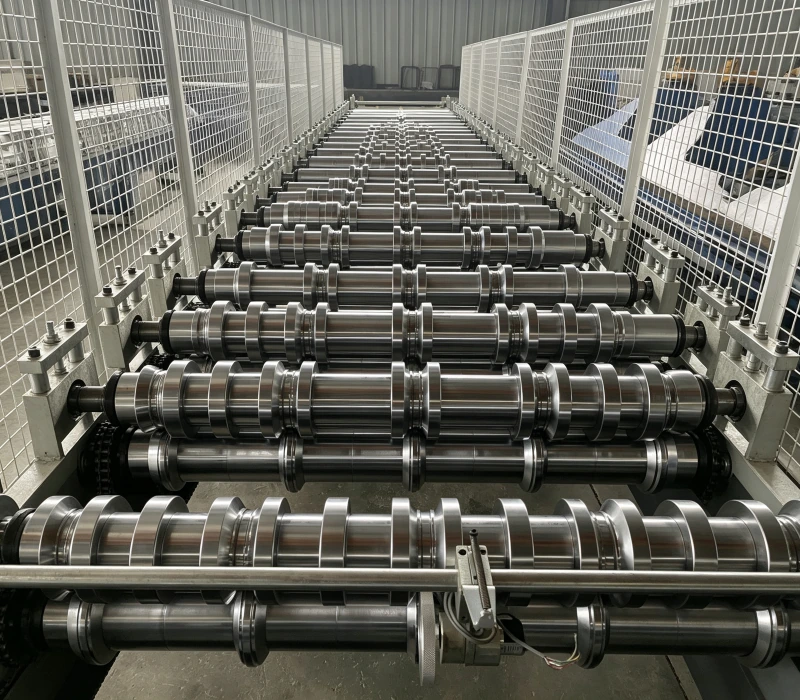

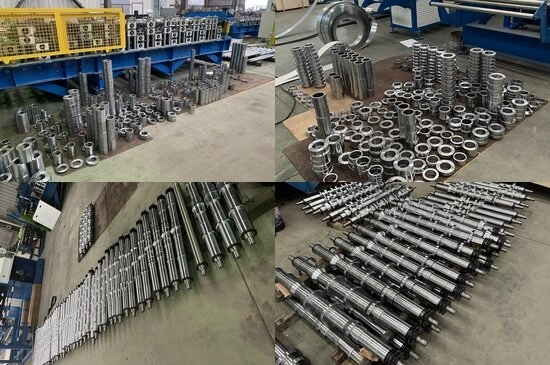

Rollers and shafts
The roller and roller shaft are selected and processed according to the simulation design of the rolling forming system. The materials are 45 carbon steel, 40Cr, 42Cr, Cr12, Cr12MoV, etc. The processing steps include turning, milling, precision grinding, chrome plating, nitriding, heat treatment, etc.
-

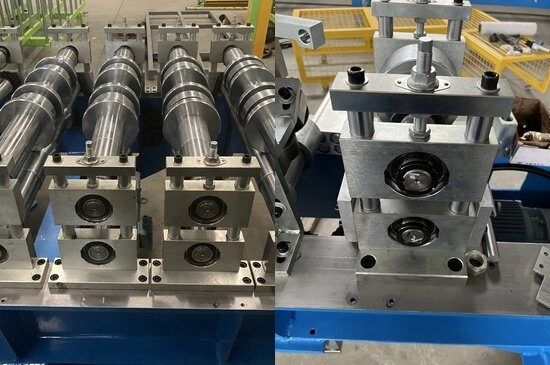

Roller station
The roller base adopts European guide pillar design, casting memorial archway design, etc. Good assembly and maintenance performance, high-precision manufacturing, make the forming system work stably, with high precision, low vibration, and good durability.
-

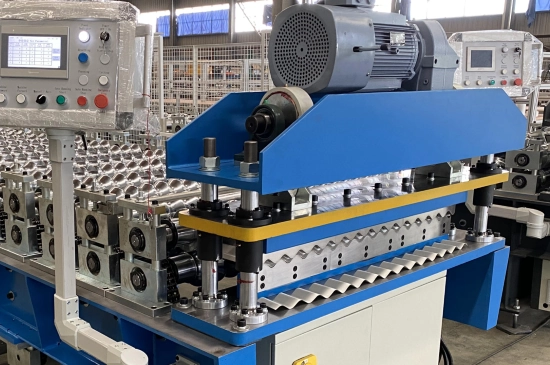

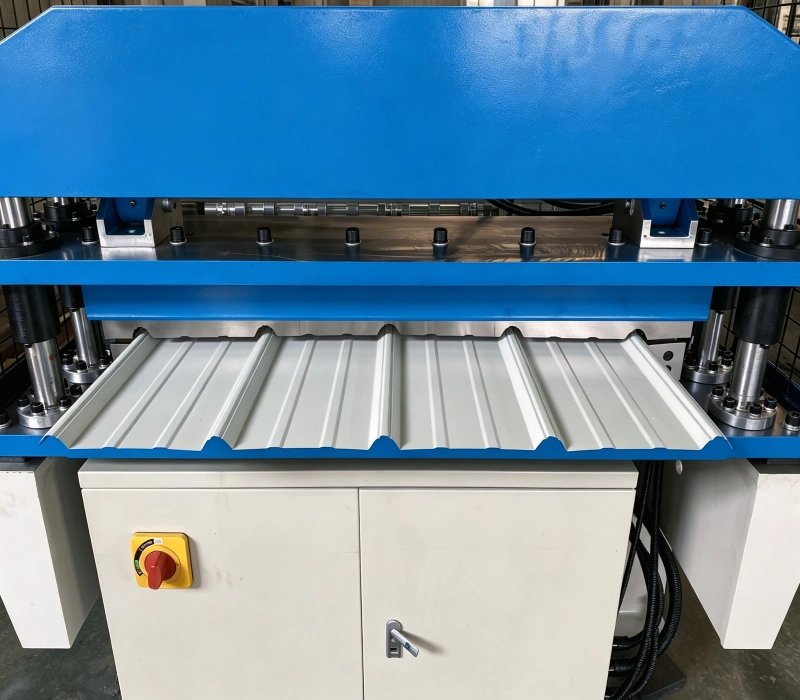

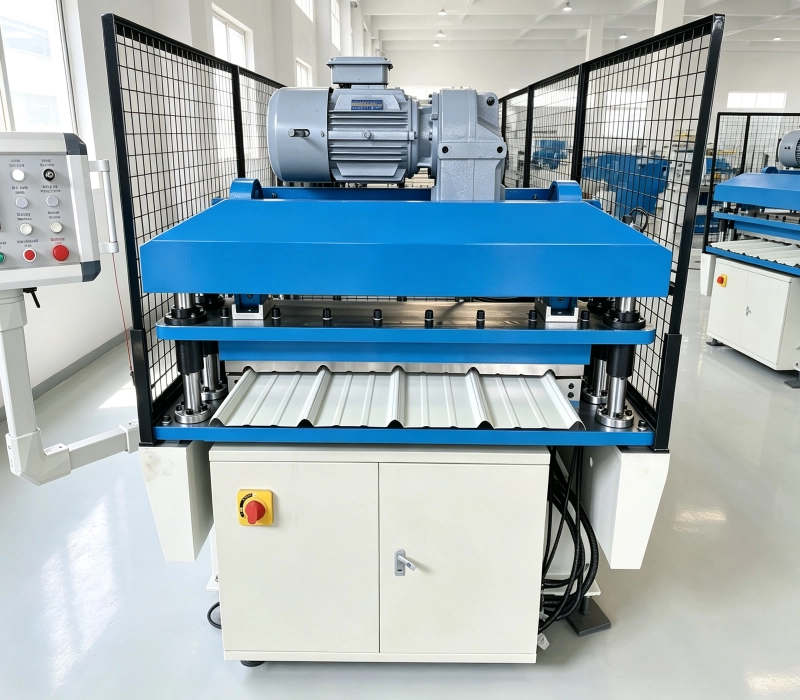

Post cutting system
The post cutting system can be configured with multiple options, with efficient and maintenance free motor cutting, greater hydraulic cutting force, and longer cutting stroke. The cutting accuracy and stability of the 4-guiding column are better.
-

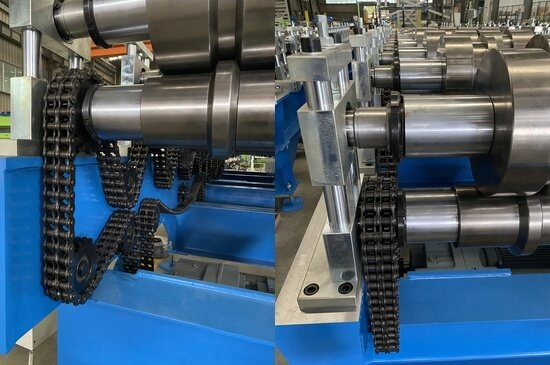

Transmission system
The built-in double row chain transmission system has good working stability, high transmission strength, high safety, and strong maintainability.
-

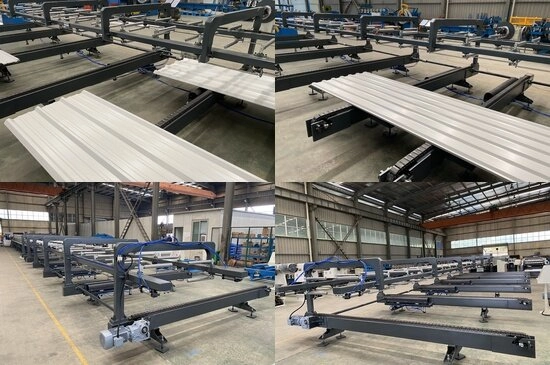

Stacking system
Multiple parameters can be selected for the automatic stacking system. 6 meters, 8 meters, 10 meters, 12 meters, 15 meters, etc. The maximum length can be customized according to customers. Horizontal and vertical discharge are also optional.
-

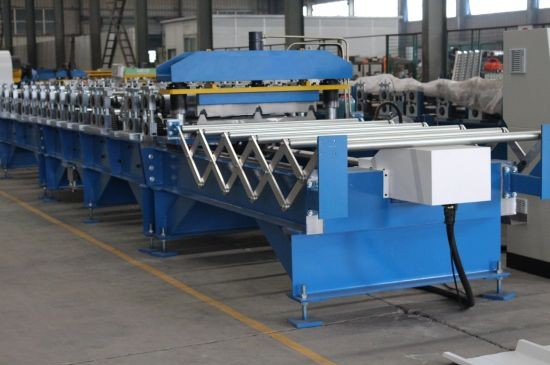

Flying cutting system
The flying shear system can be customized according to customer needs. The flying shear system achieves non-stop roll forming during cutting, greatly improving production speed and efficiency. It is recommended to use the flying shear system in conjunction with an automatic stacking system.
-

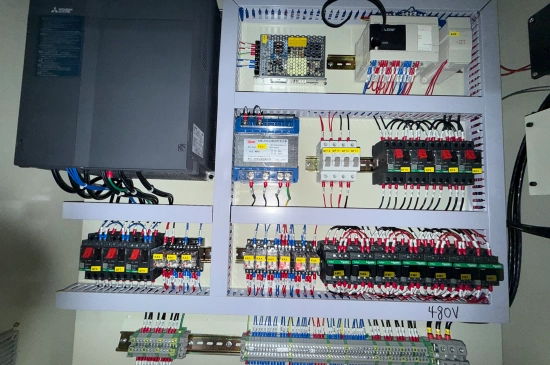

Electric system
The electronic control system uses international brands such as Mitsubishi and Siemens PLC and frequency converters, as well as Schneider circuit breakers, Omron encoders, and equivalent low-voltage electronic components. Realize fully automatic control of the roll forming system, complete automated forming, fixed length cutting, discharging, stacking and other production processes.
-

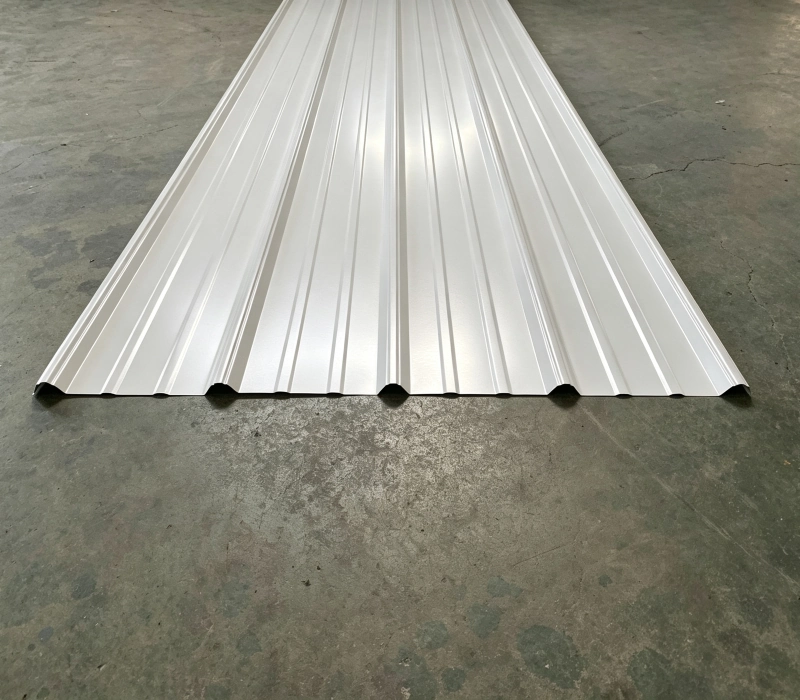

AG Profile CAD Drawing
Download
Parameters
- Material: GI, GL, PPGI, PPGL
- Thickness: [0.3-0.7] mm
- Yield strength: 650MPa
- Forming Speed: [45] m/min
- Forming Stations: [25]roller stations
- Rollers shaft material: 42Cr
- Rollers shaft diameter: Φ86mm
- Cutting Method: [Electric motor post cutting]
- Control System: Mitsubishi/SiemensPLC + HMI
- Power:220V/60Hz, 380V/50Hz, 400V/50Hz, 415V/50Hz, 440V/60Hz, 480V/60Hz
Customization
Capacity of decoiler/ Coil cart/ Profile drawing/ Material/ Thickness/ Width/ Speed/ Pre shearing/ Post cutting/ Safety fence/ Roll forming line layout/ Factory layout/ Electric control system/ hydraulic system/ Core component brands/ Roll forming system
Applications
Roofs and walls of factory building, steel structure workshop
Roofs and walls of warehouses and logistics warehouses
Roofs and walls of large markets, greenhouses, and livestock farms (chicken coops, cattle sheds)
Simple shed, material shed, car shed, rain shed
Roofs and walls of temporary board houses on construction sites
Construction site fence, temporary enclosure wall
Simple activity room
